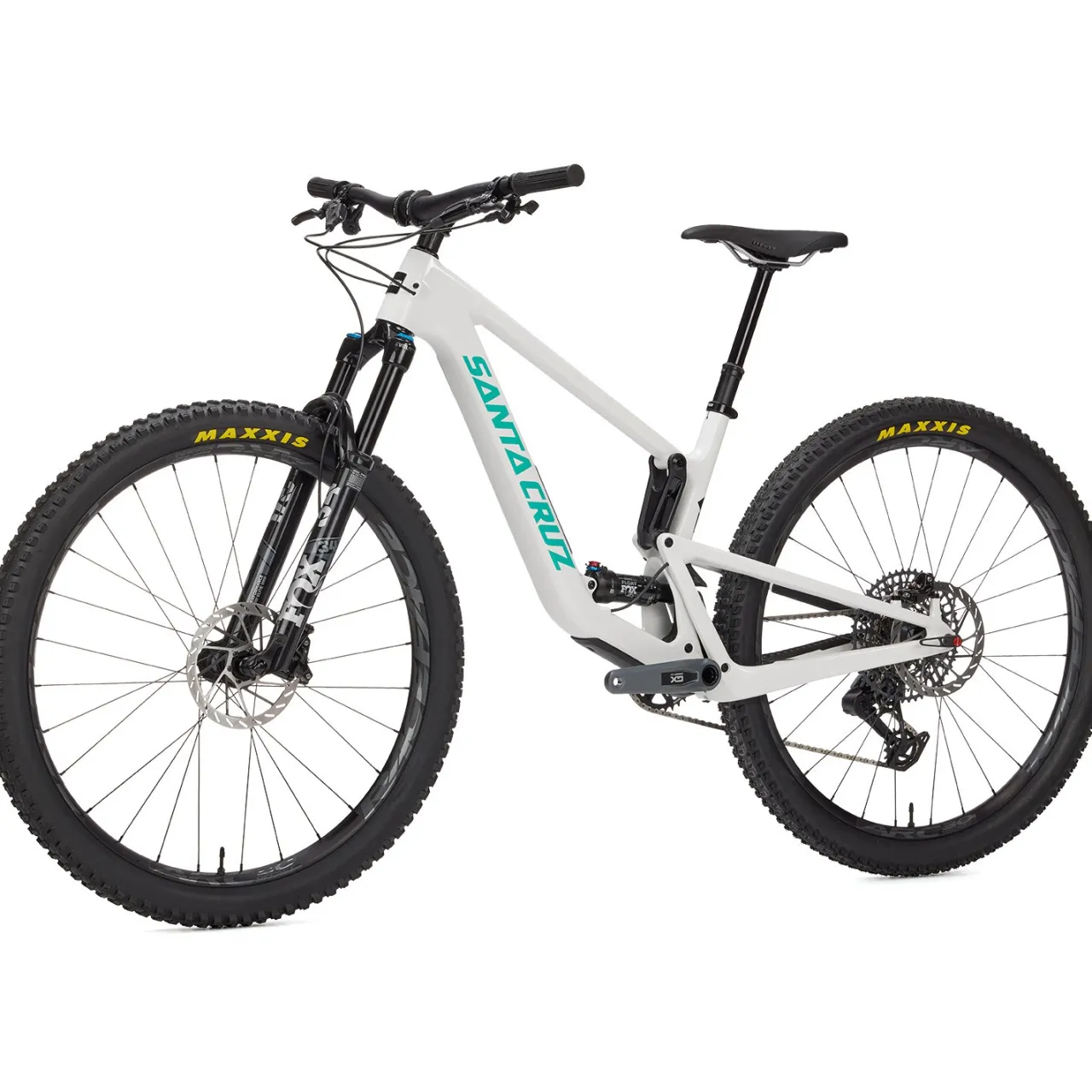

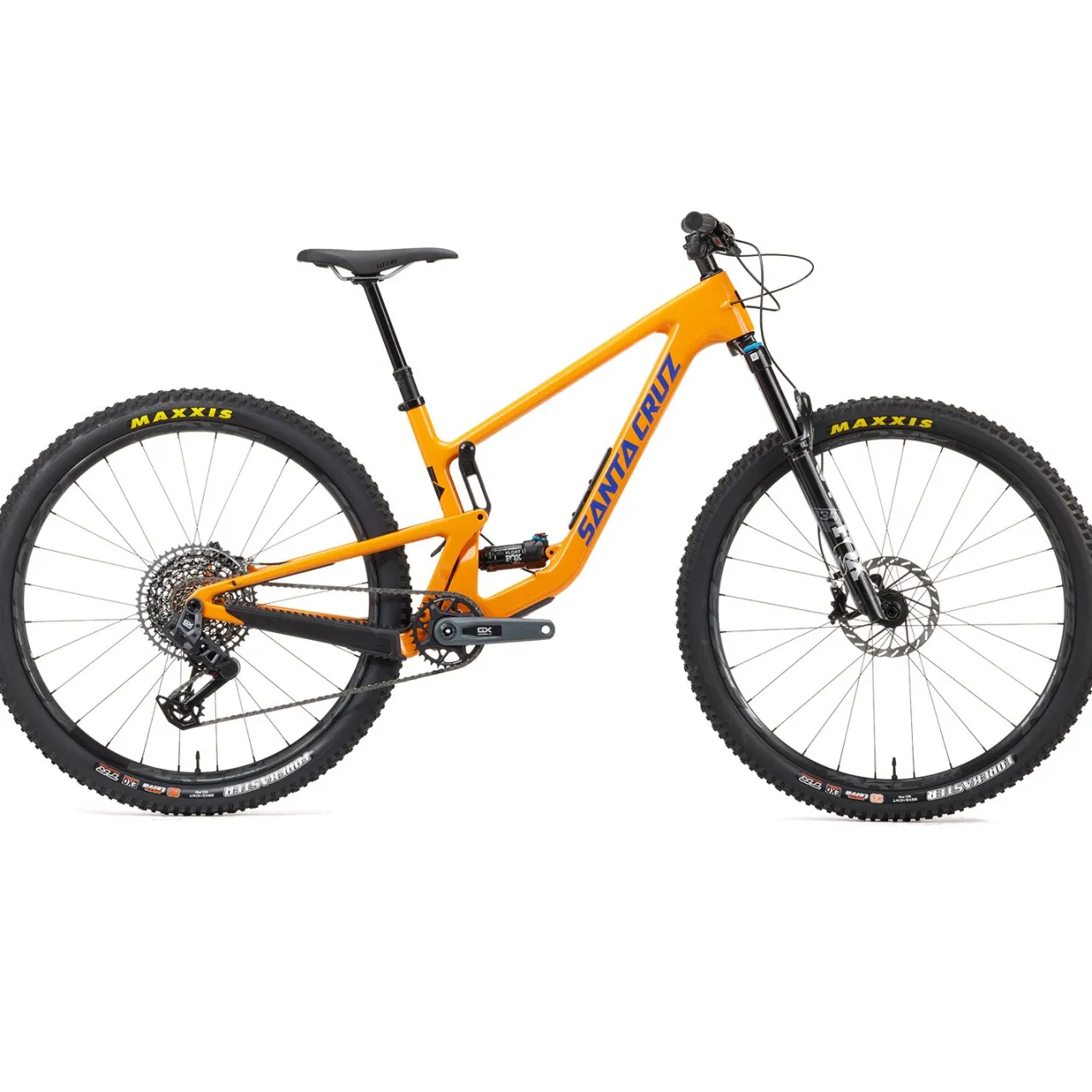

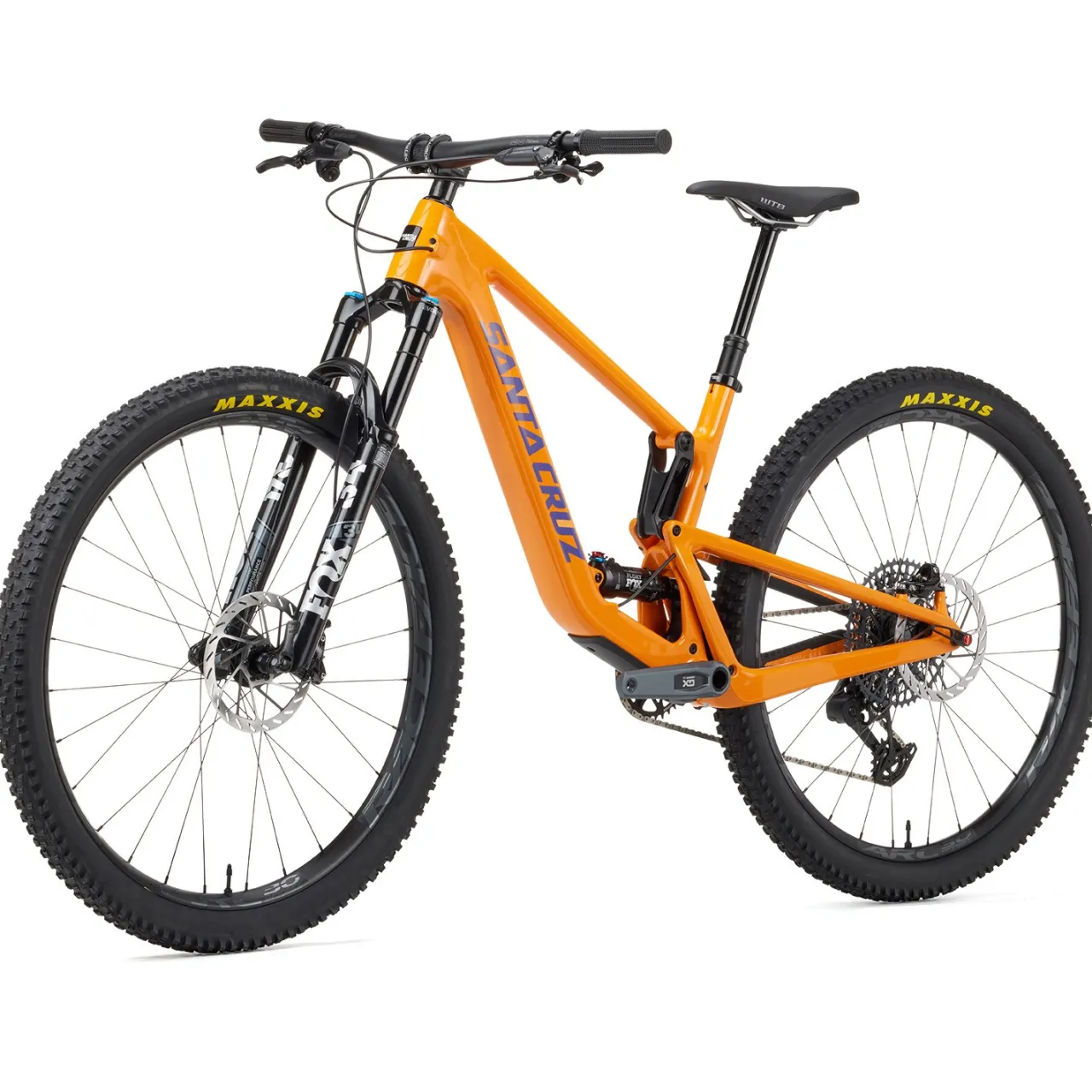

Santa Cruz Tallboy 5 C GX AXS Complete Mountain Bike 2024- Mountain Bikes

Santa Cruz Tallboy 5 C GX AXS Complete Mountain Bike 2024- Mountain Bikes

$87.00

Unreasonably fun, across a wide range of trails. When you factor in everything th…

Size

Color

Clear

SKU: SKUEB2454461001 Categories: Bike, Bikes, Mountain Bikes Tags: Gloss Melon, Gloss White, Santa Cruz Brand: Santa Cruz

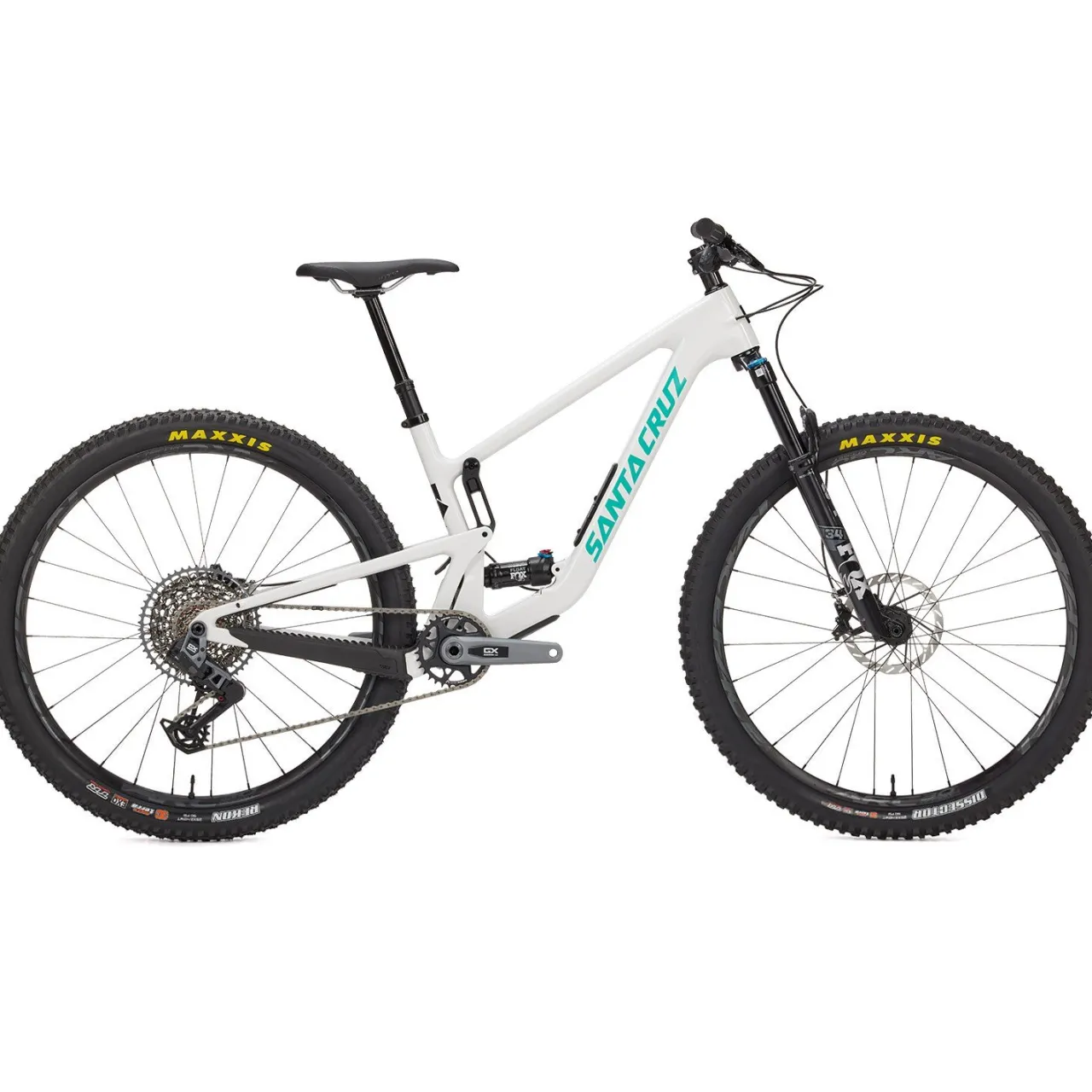

Unreasonably fun, across a wide range of trails. When you factor in everything the Santa Cruz Bicycles Tallboy 5 C GX AXS Complete Mountain Bike excels at, it’s like five bikes in one. It’s 120mm of high octane pumptrack bikepack singletrack bermslap, encased in a bombproof carbon wrapper. This Tallboy has the latest VPP® suspension design, size-specific rear ends, Glovebox™ in-frame storage, and SRAM’s latest T-Type wireless drivetrain – bombproof tech in the GX trim. Seriously, you only get to ride one bike at a time, and a Tallboy is more fun always. Show up fashionably late and finish first with the biggest grin!

Key Features

Carbon C Frame– A minimal weight gain of approximately 250 – 280 grams (0.6 lbs) for the C frame over the CC due to the different grade of carbon used. Whether you’re riding a carbon CC or C frame, you get exactly the same legendary strength and stiffness because Santa Cruz uses exactly the same manufacturing facility and techniques.

Travel– 130mm Front / 120mm Rear

Wheel Size– 29″

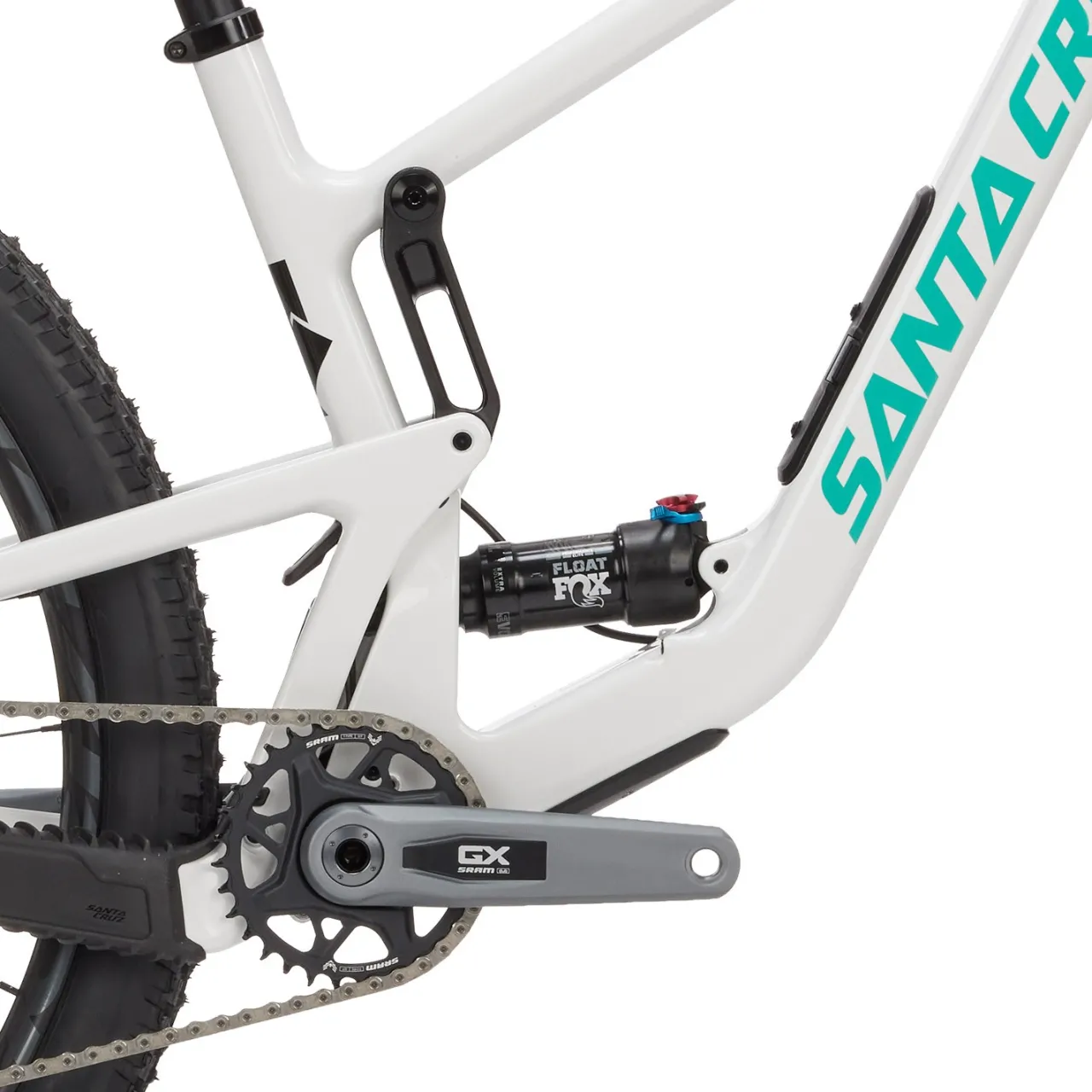

Lower-Link Mounted VPP® Suspension– VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines. This redesign mounts the shock lower on the bike, making for an even better ride quality.

The Glovebox™– Seal whatever you want to carry on your ride inside your downtube. Secure and easy to access, the Glovebox™ has a Tool Wallet and Tube Purse inside, to help organize your stuff too. Simply cavernous!

Proportional Chainstay Lengths– With rear ends that match the size range, this bike’s geo and ride quality is the same for all riders.

Integrated Flip Chip for High / Low Geometry Setting

Internal Brake & Dropper Cable Routing

Biking Type: Mountain MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.

Used For: Cross Country, Trail Cross CountryWith speed and pedaling efficiency in mind, cross country (XC) bikes are the lightest mountain bikes with the least suspension travel (typically 0 – 120mm). TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.

Suspension: Full Suspension Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.

Frame Material: Carbon CarbonCarbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.

Gearing: 1 x 12

Water Bottle Mounts: 1

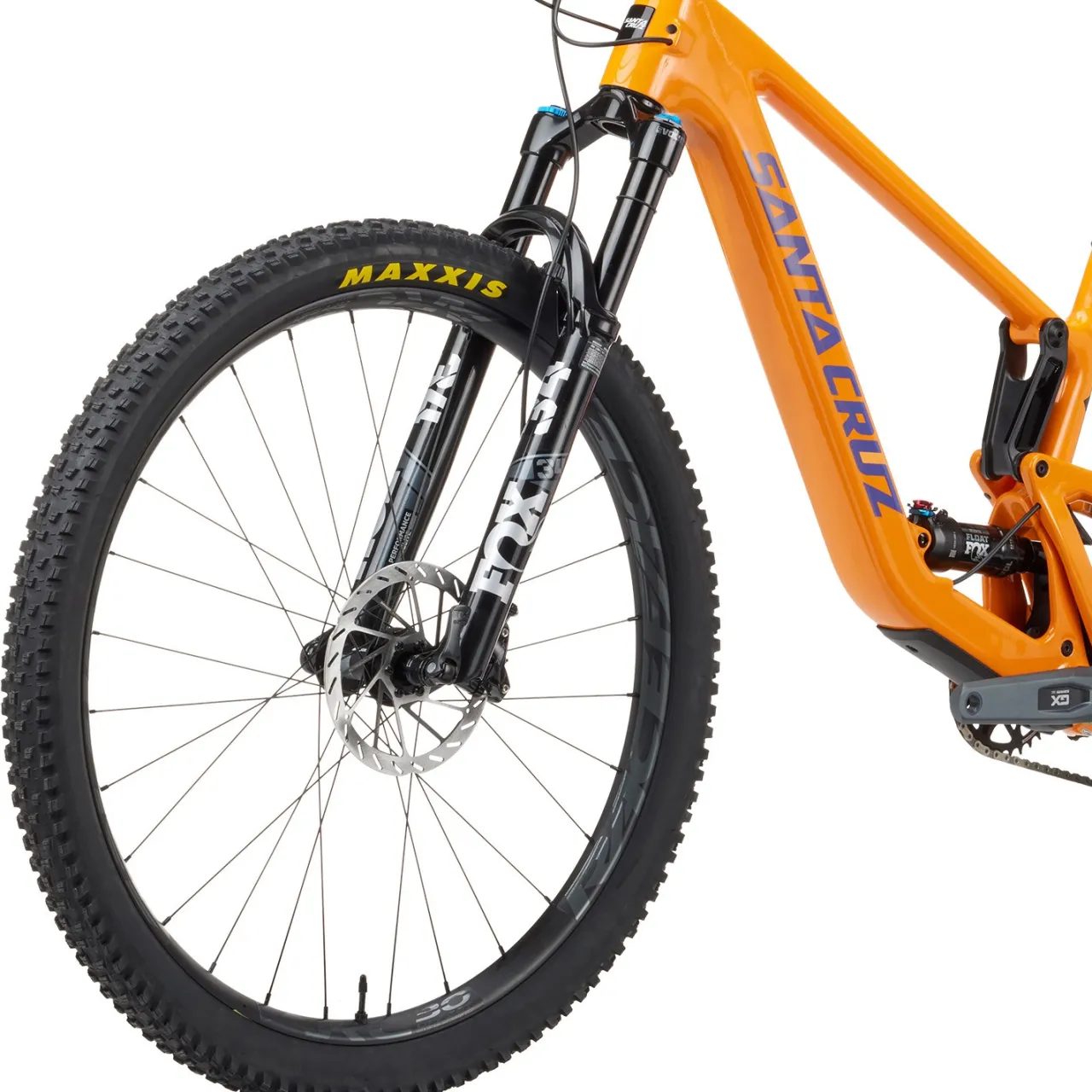

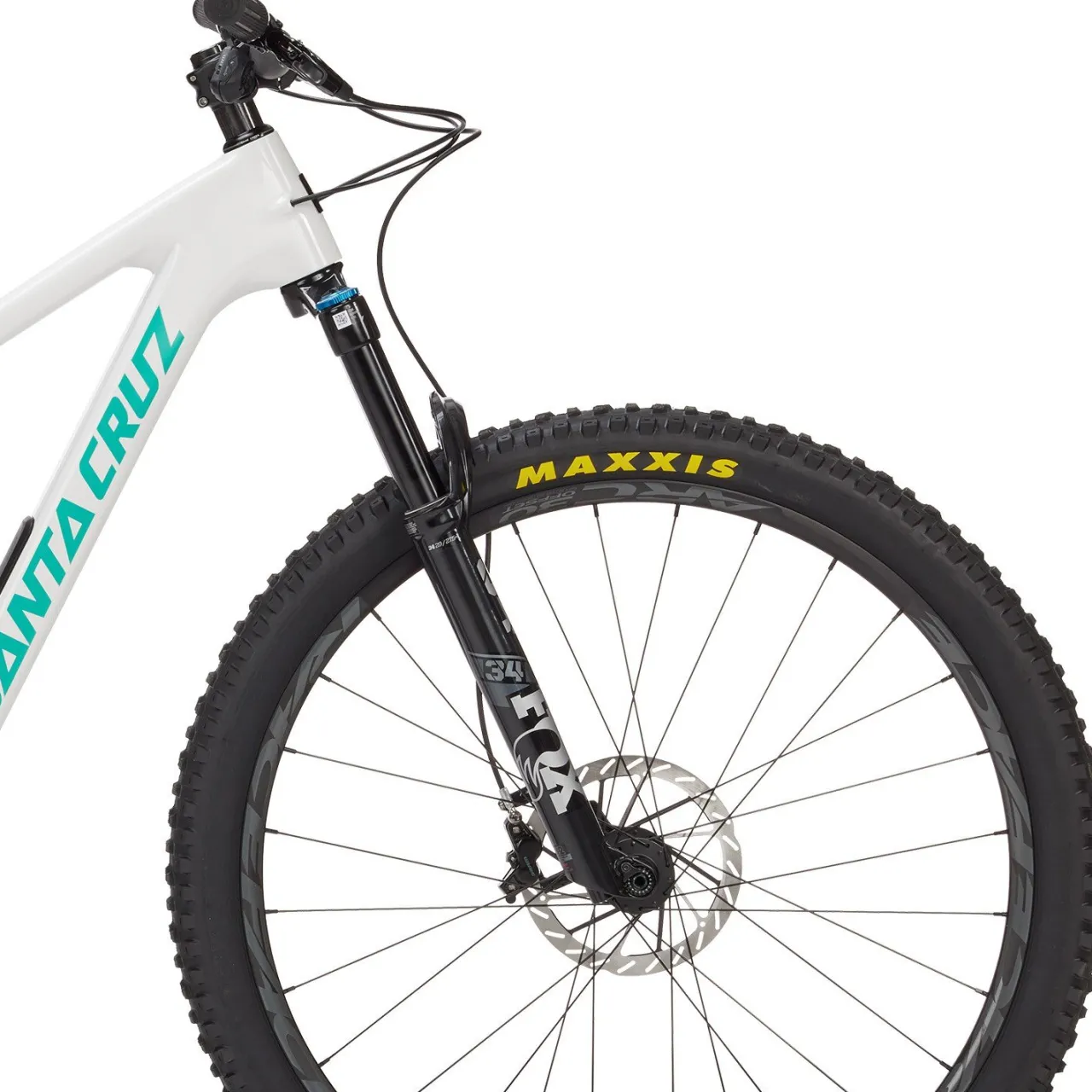

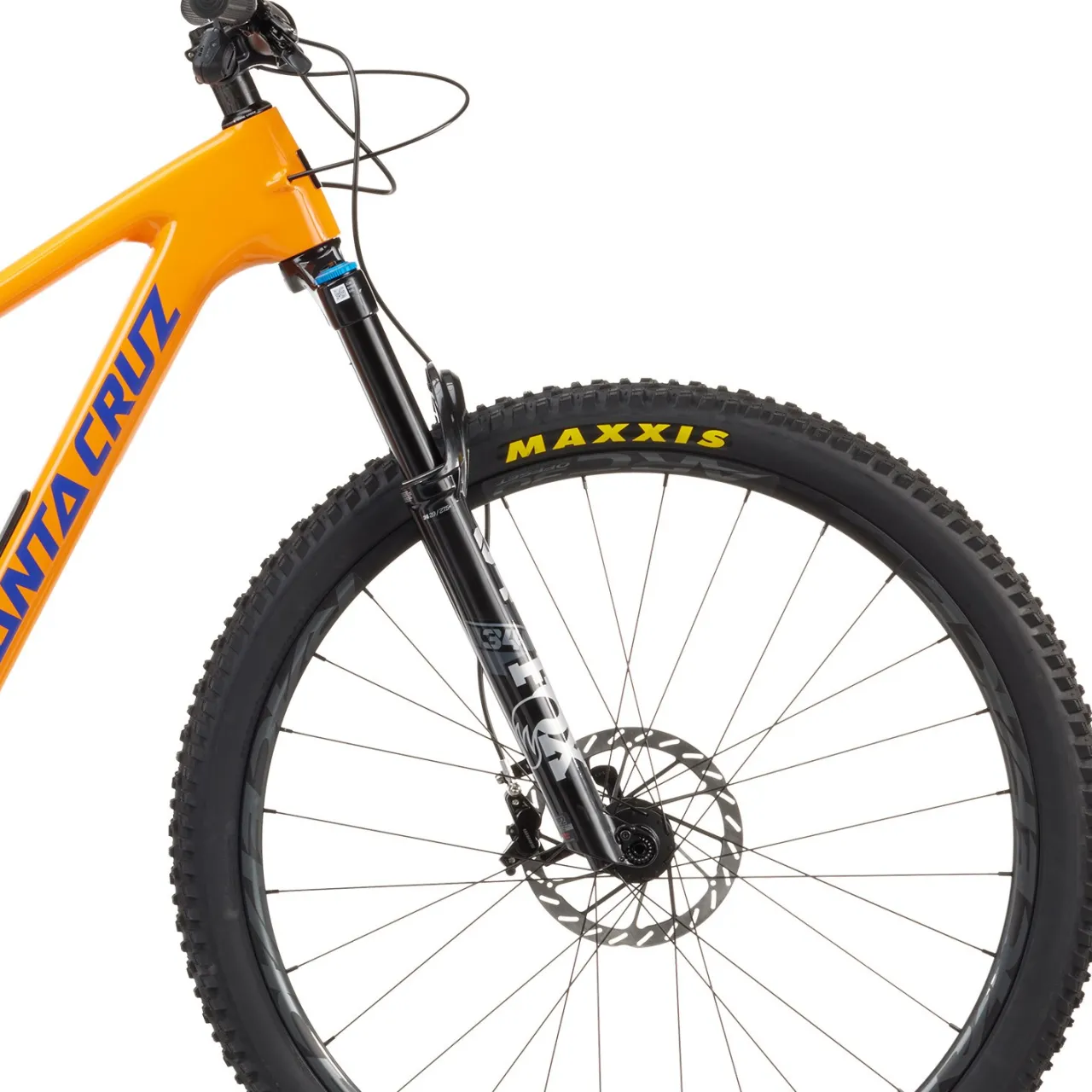

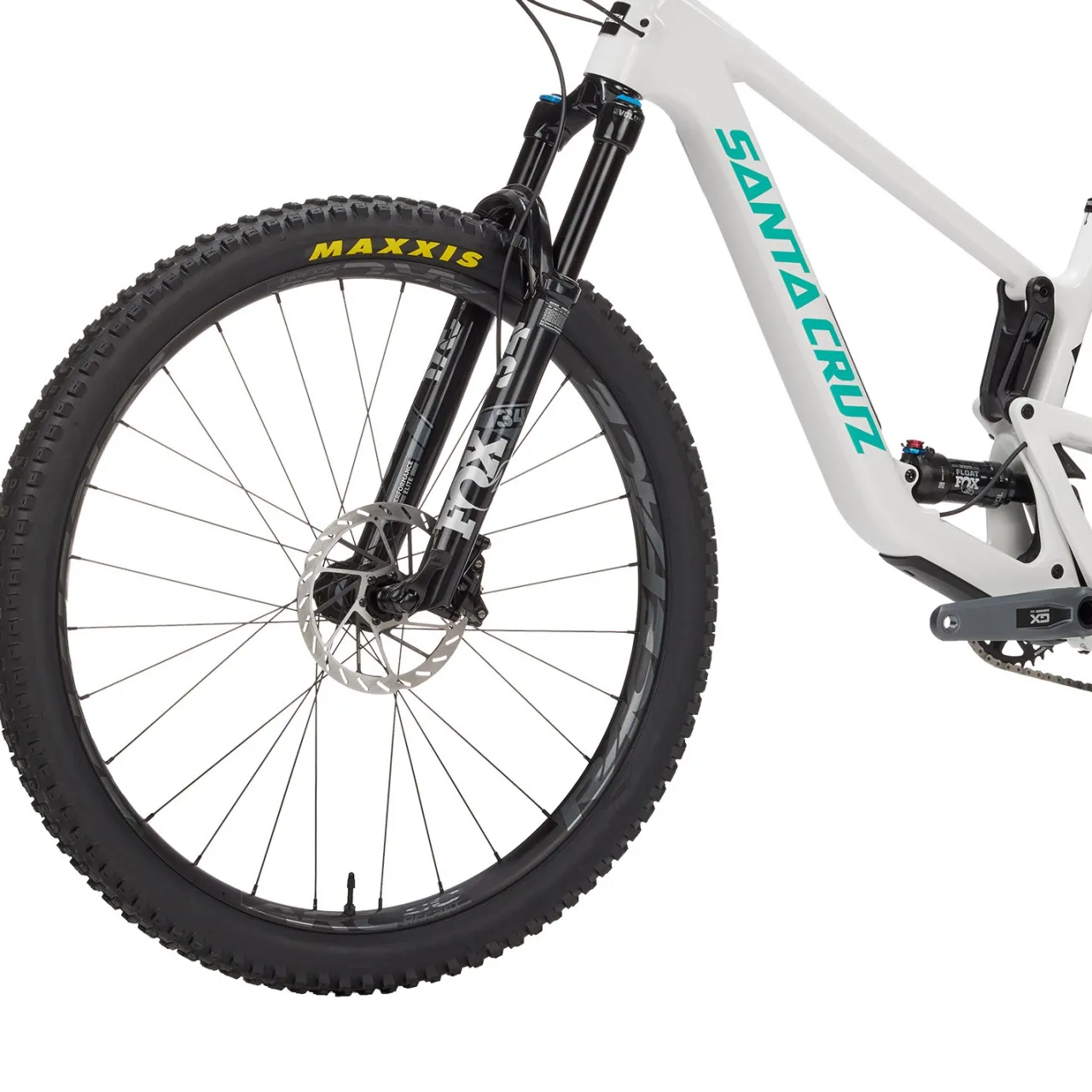

Fork: Fox 34 Performance Elite

Stanchion Diameter (mm): 34

Fork Travel (mm): 130

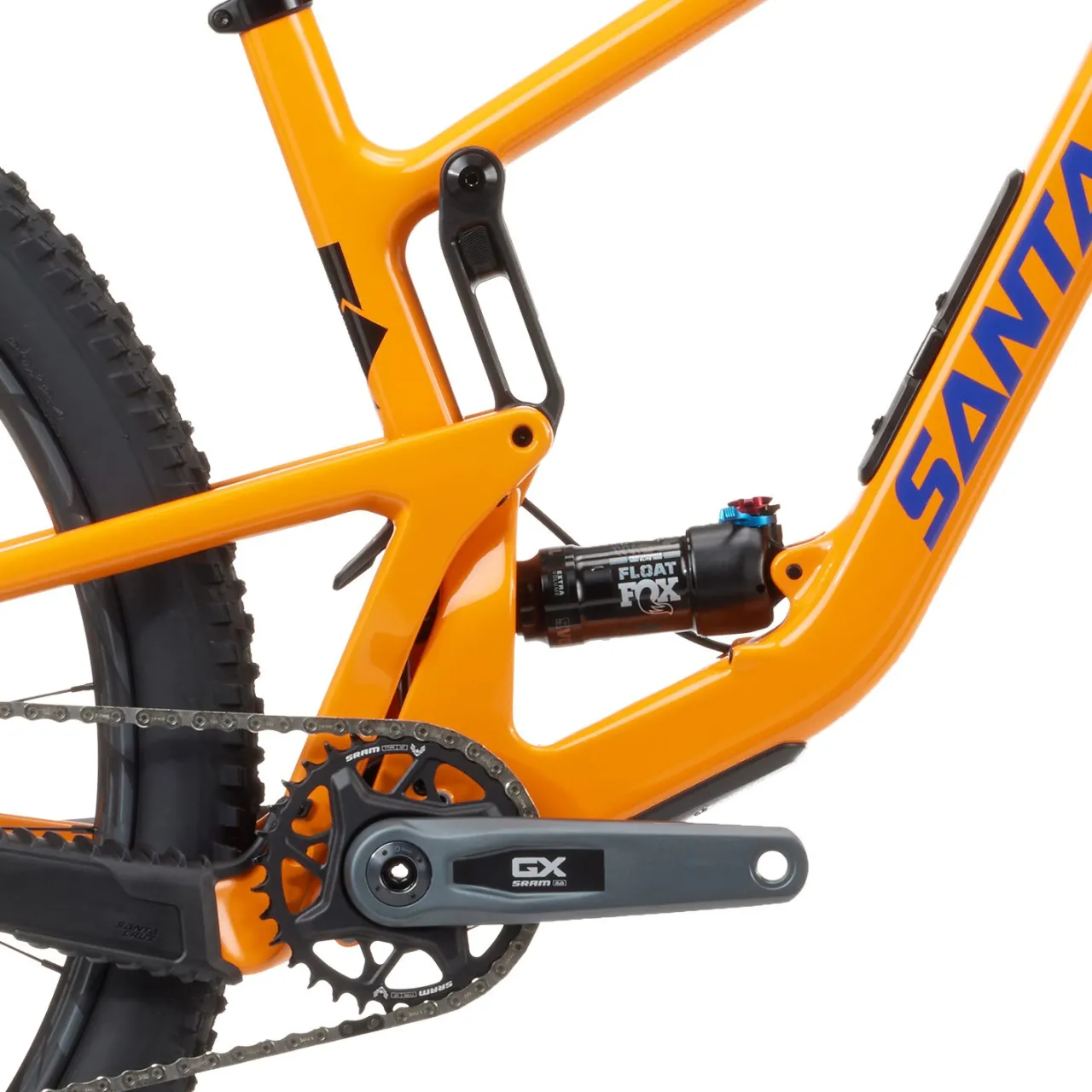

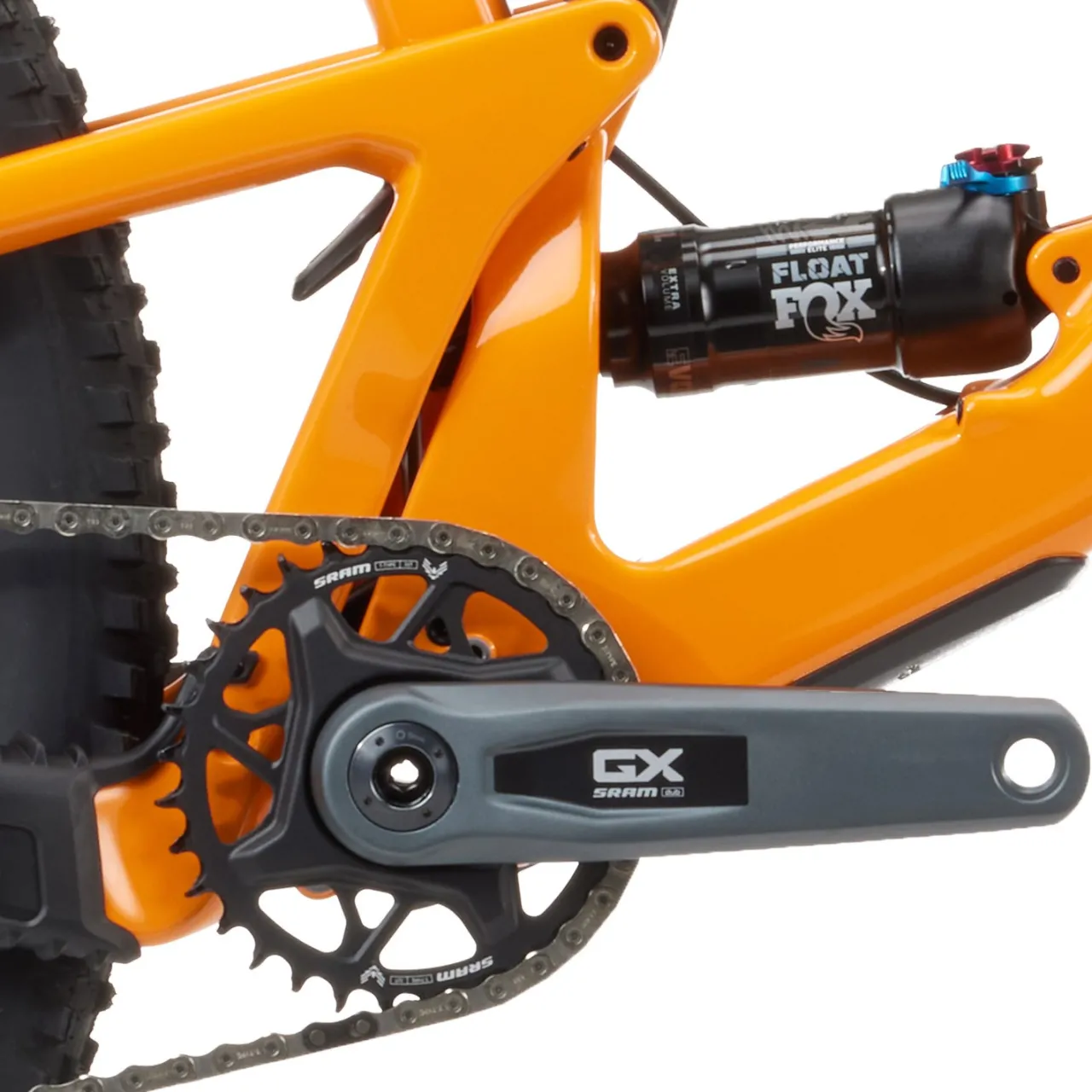

Rear Shock: Fox Float Performance Elite

Rear Travel (mm): 120

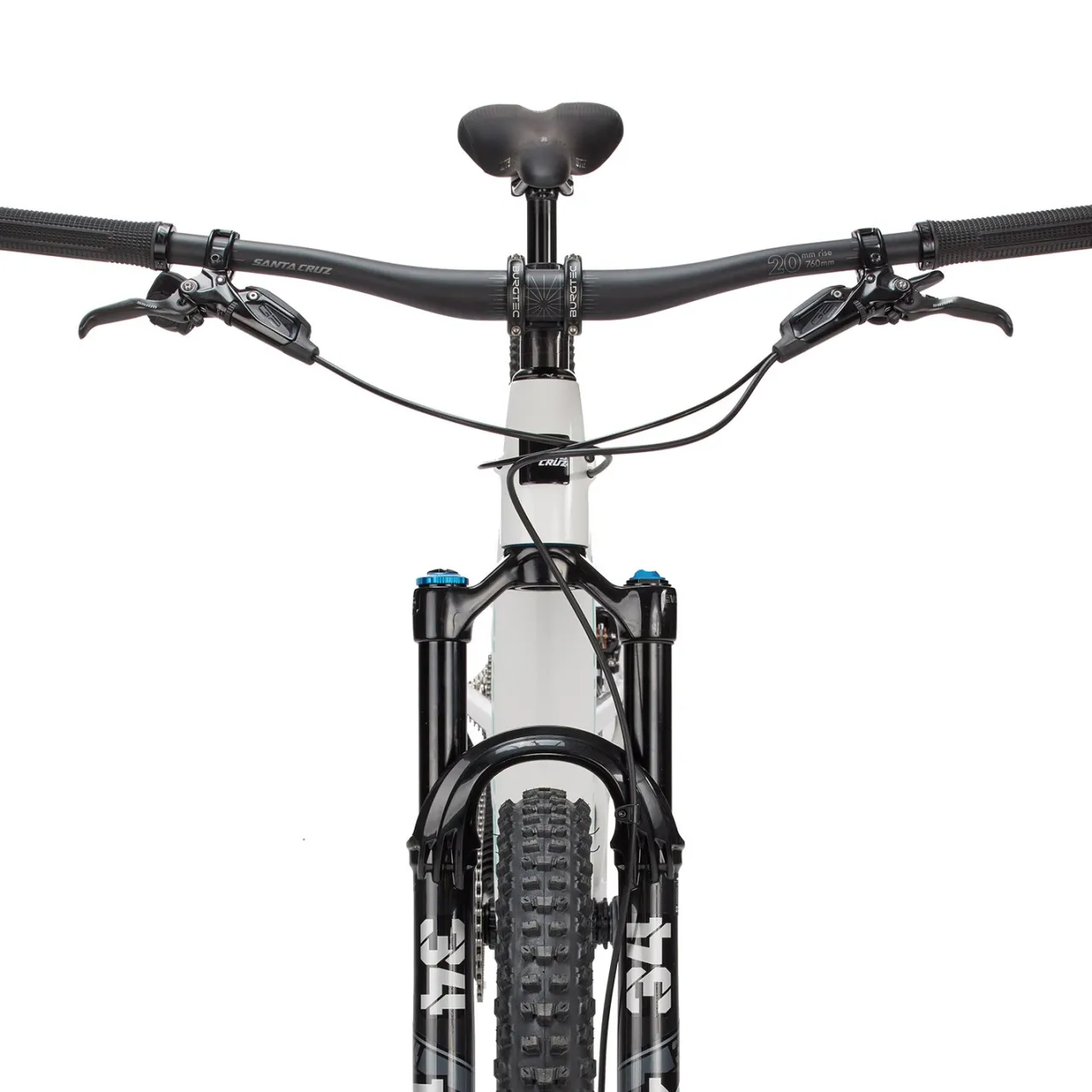

Shifters: SRAM AXS Pod Bridge

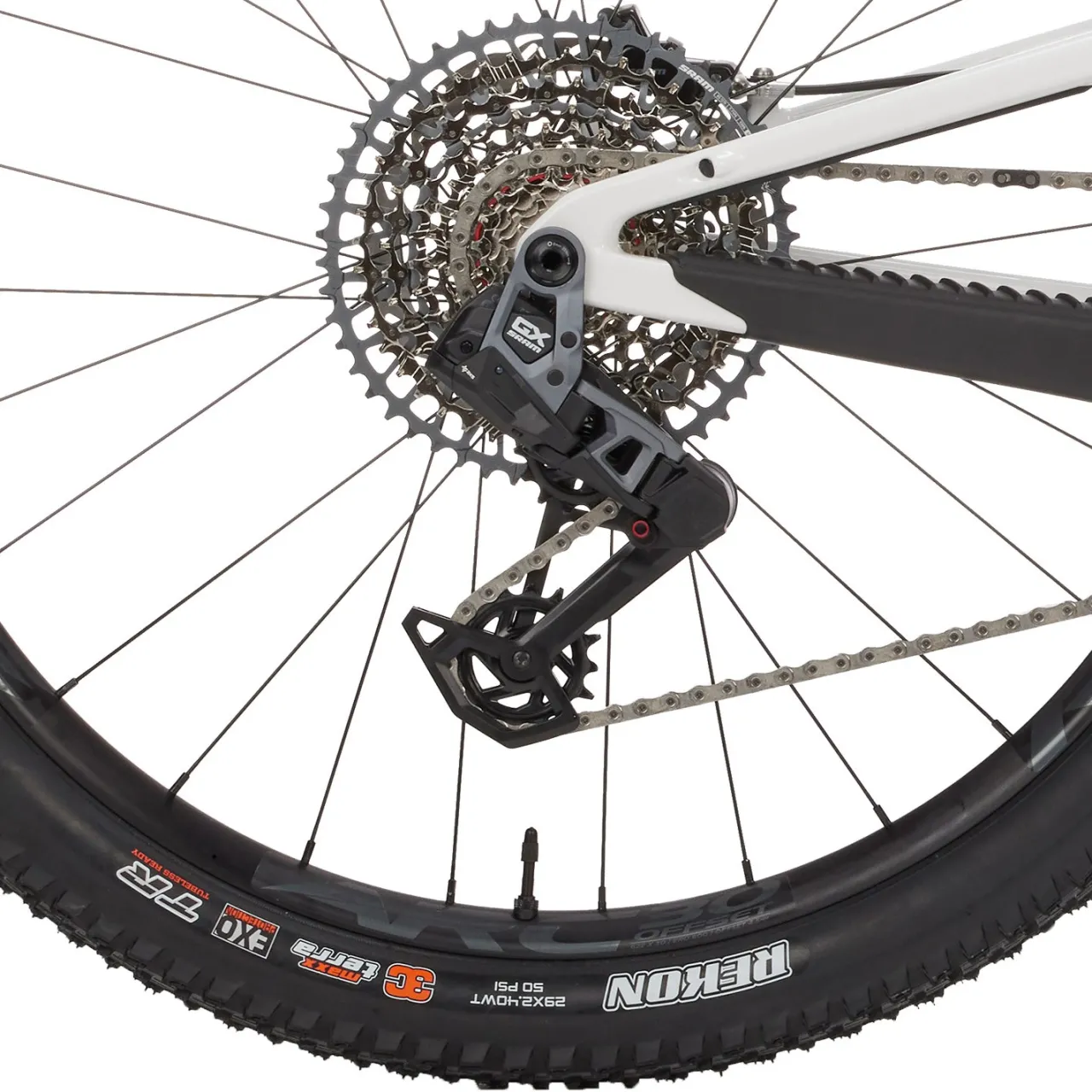

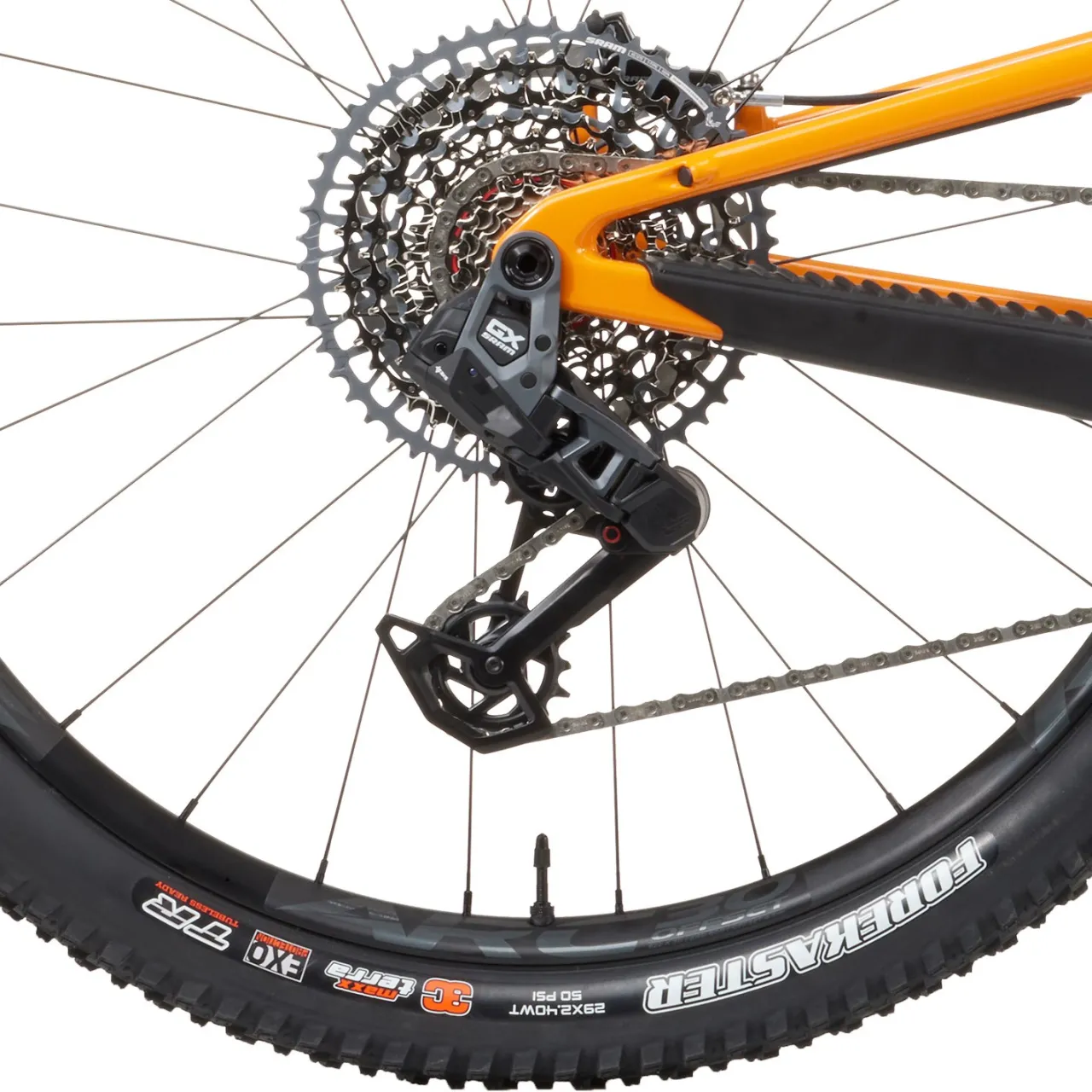

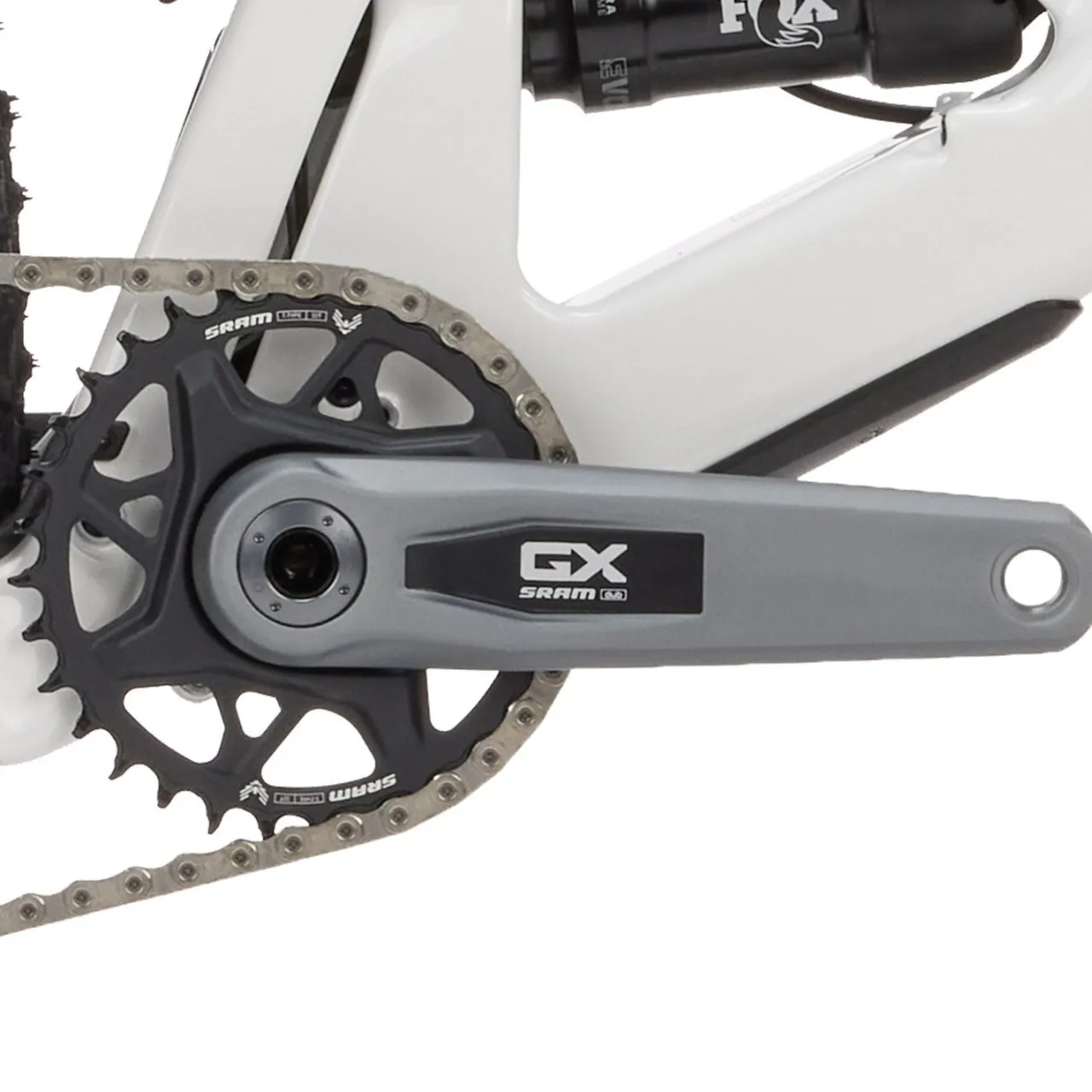

Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-Speed

Size	XS	S	M	L	XL	XXL
Rider Height	4’8″ – 5’1″	5’1 – 5’5″	5’5″ – 5’9″	5’9″ – 6’1″	6’1″ – 6’4″	6’4″ – 6’7″
Reach (mm)	405	430	455	475	495	520
Stack (mm)	601	610	619	628	646	656
Effective Top Tube (mm)	556	580	603	623	645	671
Seat Tube (mm)	370	380	405	430	460	500
Head Tube Angle (°)	65.7	65.7	65.7	65.7	65.7	65.7
Seat Tube Angle (°)	76.0	76.3	76.7	76.8	77.0	77.1
Chainstay Length (mm)	430	430	433	437	439	443
Bottom Bracket Height (mm)	335	335	335	335	335	335
Bottom Bracket Drop (mm)	38	38	38	38	38	38
Head Tube Length (mm)	95	105	115	125	145	155
Wheelbase (mm)	1138	1167	1199	1227	1257	1290
Standover Height (mm)	680	693	696	698	698	701
Complete Weight (lbs)			29.84
Complete Weight (kg)			13.54
Wheel Size	29″	29″	29″	29″	29″	29″

Size

XXL

Rider Height

4’8″ – 5’1″

5’1 – 5’5″

5’5″ – 5’9″

5’9″ – 6’1″

6’1″ – 6’4″

6’4″ – 6’7″

Reach (mm)

405

430
